1982-1992 Camaro Firebird - Explorer Rear Axle CAD Package

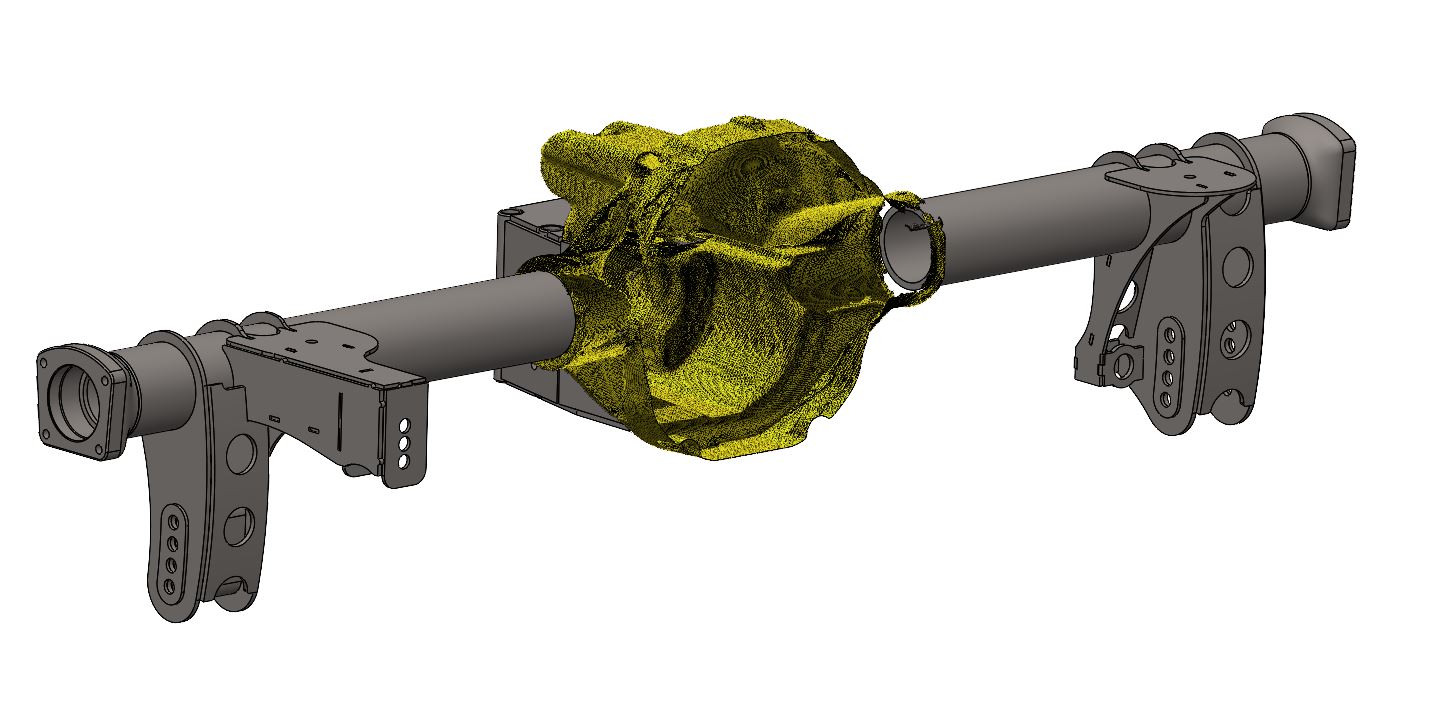

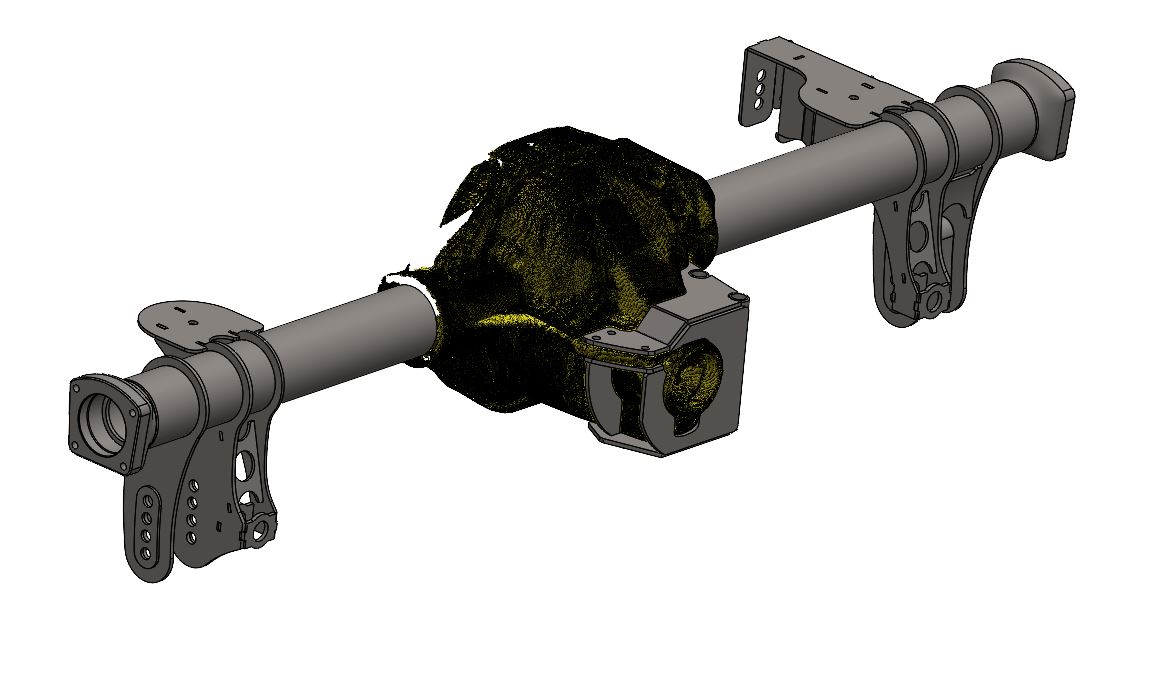

CAD models only! Step file of rear end assembly including 3d scan of Ford Explorer center section. Axle tubes are updated to 3" diameter DOM replacements, and a step file provided for GM housing ends with Ford bearing if reusing the Explorer Axles. Please use other ends if using aftermarket axles. All brackets include DXF files for laser cutting. Details provided for round tubing standoffs for shock mounts. Addiitonal holes included to change antisquat, as well as lowered panhard holes to both lower roll center and increase exhaust clearance.

‍
